Summary: A fiber cable temperature cycling test IEC F1 checks whether attenuation changes acceptably as a cable moves between specified low, ambient and high temperatures. Buyers must define the temperature profile, sample arrangement, soak criterion, wavelengths, monitored fibers and pass limits.
The sample readings below are hypothetical and do not claim Liqiba test performance. Temperature range and acceptance values must come from the exact cable specification and applicable standard edition.
Use the current method-specific standard
IEC 60794-1-201:2024 defines environmental temperature cycling method F1 and explains that attenuation change is the observed performance quantity. It partially replaces the older grouped IEC 60794-1-22 publication.
Do not cite only “IEC 60794” because that series contains many procedures. Record part number, year, method and any referenced product-family standard. A laboratory needs the licensed document to obtain the complete sequence and reporting requirements.
Distinguish F1 from fixed-end F12
General cable cycling and a no-end-movement termination condition are different questions. IEC 60794-1-212:2024 defines F12 for cable elements fixed at both ends, intended for conditions such as termination with interconnecting or passive components.

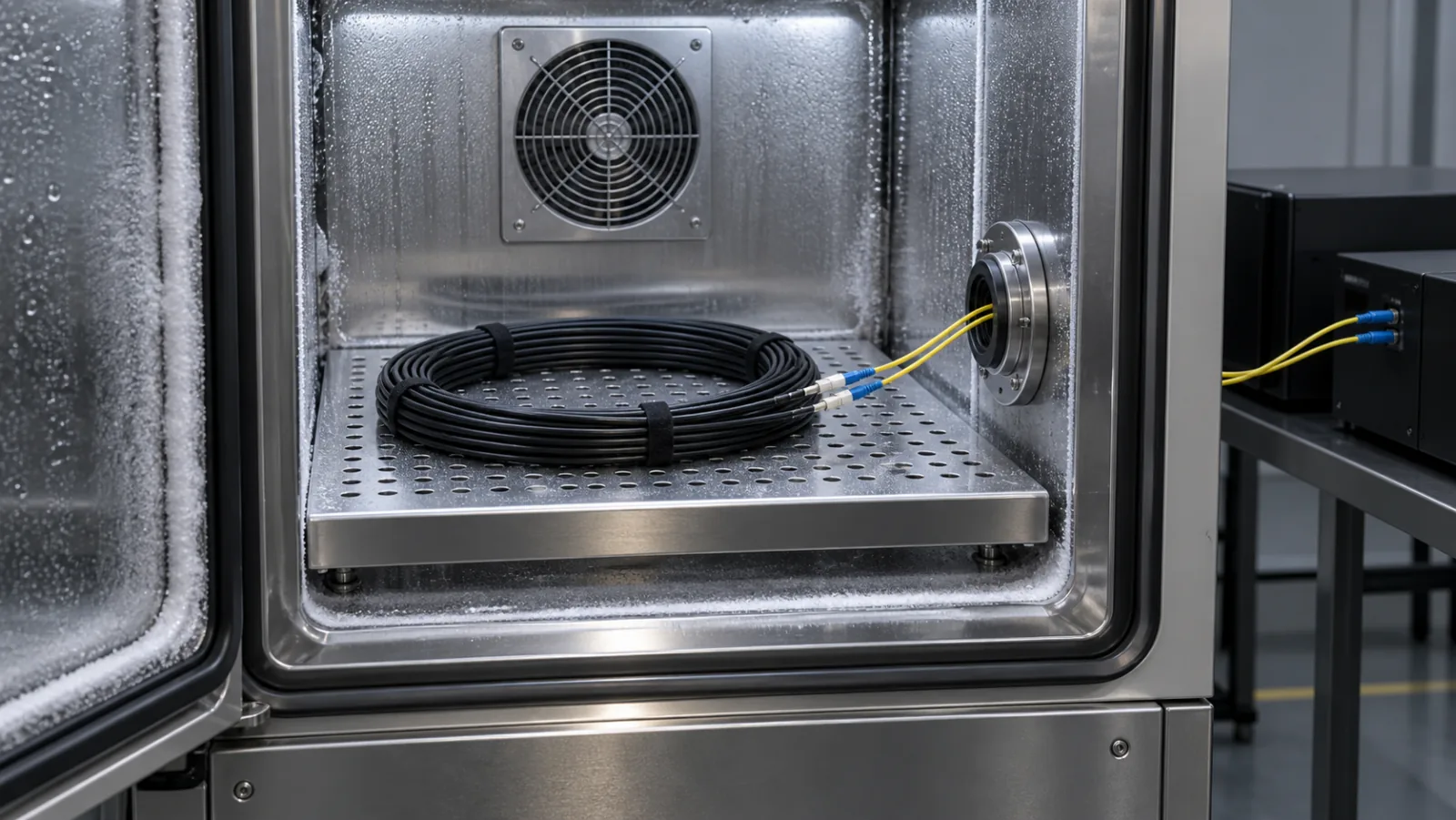

Specify whether cable elements can move at sample ends, how the cable is coiled or mounted and how leads leave the chamber. Selecting the wrong arrangement can miss the stress state relevant to the installed product.
Define the thermal profile and optical baseline
List low and high plateaus, chamber tolerance, ramp, soak determination, number of cycles and ambient reference condition. The cable core may lag chamber air, especially for a large reel; a clock-only soak assumption needs support from the governing procedure.
Measure the initial reference at required wavelengths and identify monitored fibers. Keep source, detector and external reference cords stable outside the chamber where the procedure allows. Log attenuation during critical plateaus rather than reporting only the final room-temperature reading.
Separate transient and residual changes
A cable may show its largest attenuation change at the cold plateau because contraction induces microbending, then recover at ambient. Report both maximum change during cycling and residual change after recovery if the specification requires them.
Our G.652.D and G.657 fiber comparison explains fiber categories but does not predict performance of a finished cable. The IEC cable test guide helps buyers map method evidence to the delivered construction.
Temperature-cycle attenuation worksheet
Assume an ambient baseline of 0.00 dB change for one monitored fiber. The limits and readings are hypothetical.
| Stage | Change from baseline | Record |
| Initial ambient | 0.00 dB | Reference |
| Low plateau | +0.18 dB | Transient maximum |
| High plateau | +0.07 dB | Transient |
| Final ambient | +0.02 dB | Residual |
| Decision | Compare with two stated limits | Do not average stages |
A maximum transient value and a final residual value answer different questions. Do not invent limits from this example; apply the cable specification and uncertainty rule.
Write the requirement before requesting evidence
Start with the exact product, application and document revision. State the sample configuration, environmental or optical conditions, measurement points, units and required report fields. Identify the acceptance value and whether it applies per fiber, per channel, per cable sample or to a statistical lot. A standard method and a project limit are different things: cite the method that governs the procedure and the specification that supplies the pass/fail value.
On the commercial fiber optic cable supplier page, provide these details with the inquiry. This lets a proposed construction and test plan be reviewed against the intended deployment. Do not assume a broad product-family description proves compliance for every design option.
Control samples, instruments and revisions
Give every sample and fiber a traceable identifier. Record cable marking, length, conditioning, termination method and any preparation that could influence the result. Instrument records should include model, serial number, calibration status, wavelength, reference method, settings and raw file name. If a setup changes during the sequence, document the change rather than combining unlike readings silently.
Use approved documents at the work station and archive superseded versions. Review drawings, purchase requirements and manufacturer instructions before starting. Where they conflict, stop and obtain a written disposition. This protects both buyer and supplier from judging a test by a limit that was introduced after the sample was prepared.
Apply a reproducible decision rule
Define rounding and measurement uncertainty before results are known. A displayed value at the limit can represent raw values on either side of it. Preserve additional digits in the record, then apply the agreed rounding or guard-band rule once. Repeating a measurement only until it passes is not a valid process; repeats need a stated trigger and all valid observations should remain in the file.
When a result fails, first verify identity, setup integrity, reference stability and data transcription. Then follow the approved route: retest, inspect, rework, reject or request engineering review. The record must distinguish a confirmed product nonconformance from an invalid test. Neither should be hidden by averaging unrelated samples.
Preserve a useful delivery record
A complete report contains the requirement, procedure, sample description, apparatus, conditions, chronological readings, calculation, uncertainty rule, decision and authorization. Native instrument files and photographs may support the report, but screenshots and photos do not replace numeric evidence. Mark hypothetical worksheets as examples so they cannot later be mistaken for factory results.
Keep incoming, pre-installation and post-installation checks separate. Transport, storage and field handling occur after factory release and can alter condition. If the asset is repaired or rerouted, update its configuration record and create a new baseline using the same method where practical. A clean change history makes later troubleshooting faster and supports fair warranty discussions.
Common errors and safety boundaries
Avoid starting soak timing before the required thermal condition is reached, placing optical instruments inside an unsuitable chamber, or moving reference cords during the sequence. Do not report only the best fiber when the plan requires every monitored fiber.
Never copy a limit from a visually similar cable or instrument without checking construction, wavelength, reference condition and standard edition. Follow site rules for invisible laser radiation, sharp fiber fragments, pressurized apparatus, environmental chambers and electrical equipment. Qualified personnel should use the manufacturer’s safety instructions and the project risk assessment.
Plan the sampling and witness process
State whether the evidence is a design qualification, periodic type test, production sample test or inspection of the delivered lot. These categories are not interchangeable. Define lot boundaries, sample quantity, selection method and what happens to the remainder of a lot when one sample fails. If testing is destructive or changes the sample, mark it so it cannot return to saleable stock unnoticed.
Where a customer witness is required, agree the date, language, remote-view arrangements and hold points in advance. A witness observes the approved procedure; the witness should not improvise new limits after testing begins. Record deviations and obtain signatures from the authorized representatives.
Check report completeness before release
Use an independent review to compare the report against the purchase order. Confirm that identifiers, units, wavelength, environmental conditions, calculations and pass/fail statements agree across the cover page and raw data. Verify that attachments open and that photographs show the intended sample without exposing confidential information.
The reviewer should also confirm that a statement of conformity does not extend beyond the tested configuration. A result on one cable length, instrument module or connector arrangement cannot silently qualify every variant in a catalogue. Release the report only after discrepancies are corrected or formally explained, then retain it according to the project’s record policy.
Record the final approval date and the person or organization authorized to release the result.
Frequently Asked Questions
What does IEC F1 measure on a fiber cable?
It evaluates cable performance during temperature cycling by observing optical attenuation changes under the specified procedure.
Is F12 the same as F1?
No. F12 addresses temperature cycling with cable elements fixed at both ends, representing a different boundary condition.
Why measure during the cold plateau?
Temperature-induced stress can create transient attenuation that disappears after return to ambient, so final readings alone may miss it.
Does chamber air temperature equal cable-core temperature immediately?
No. Thermal lag depends on sample mass and arrangement; use the standard’s soak requirements and the approved monitoring approach.
Can a fiber data sheet replace a finished-cable cycling report?
No. Cable materials and structure influence thermal stress, so evidence must match the finished construction.
