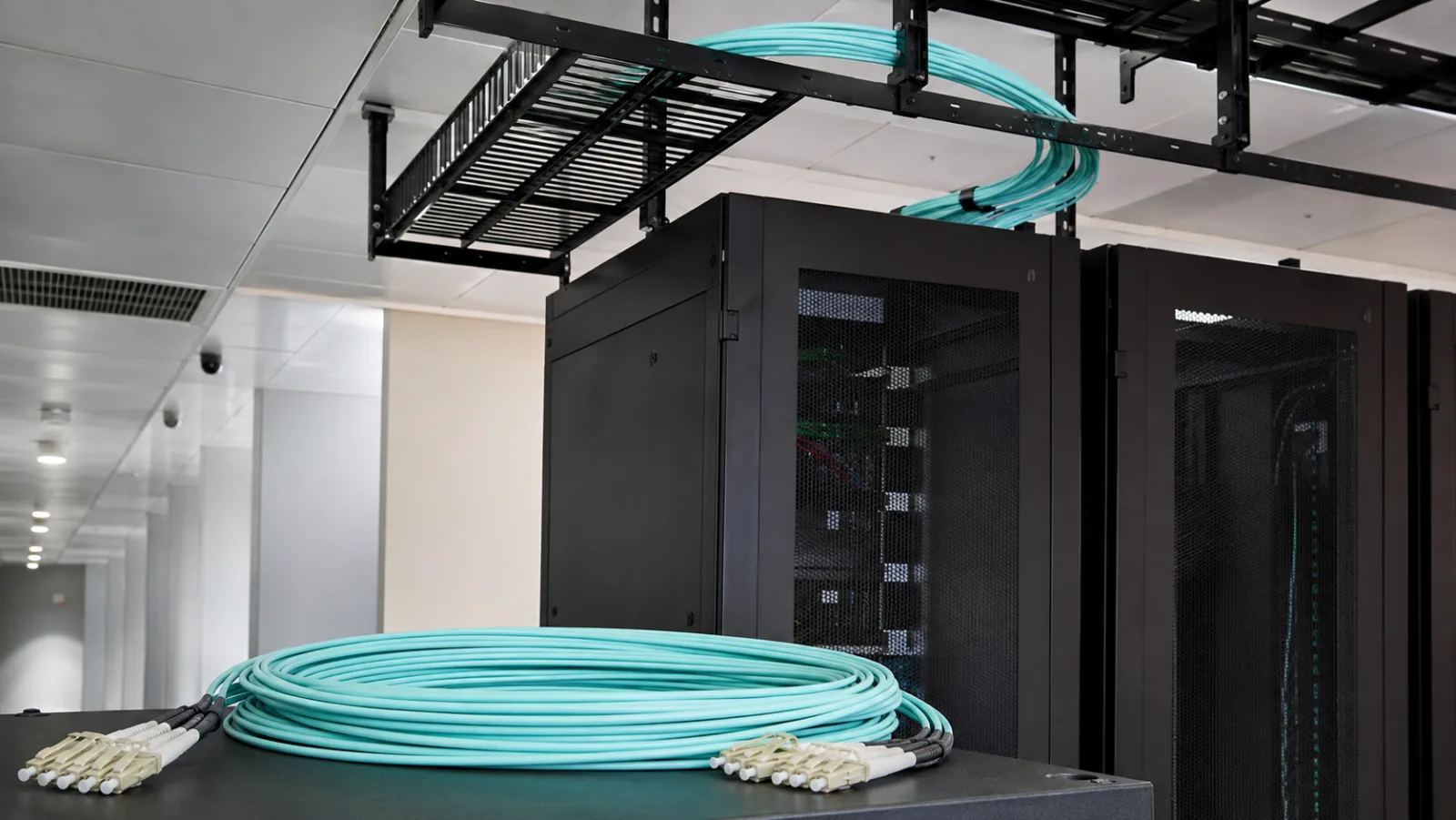

Preterminated Fiber Trunk Length: A Takeoff Worksheet

Summary: To decide how to measure preterminated fiber trunk length, define the two measurement endpoints and walk the approved cable route between them. Add only documented installation and service allowances, then check the supplier’s length tolerance and breakout convention. A route drawing with these boundaries is more useful than a single rounded length in a purchase email.

Preterminated assemblies reduce field termination work, but their fixed geometry makes ordering accuracy important. Too short can prevent installation; too long can burden pathways and rack management. The correct length is an interval that fits both the route and the available storage, not simply the largest length the budget permits.

Agree on what the supplier measures

Before measuring the room, obtain an assembly drawing. Ask whether the nominal length is measured connector-tip to connector-tip, breakout-body to breakout-body, or by another defined convention. Confirm whether protective pulling hardware is excluded and whether unequal breakout legs are part of the stated overall dimension.

Leviton’s fiber trunk product information describes factory-terminated assemblies and optional connector-protection hardware. The engineering takeaway is to approve the complete assembly configuration, not just a cable length. Put the measurement convention on the same drawing as the connector, breakout and polarity specification.

A supplier quoting a 50 m main cable with separate legs may be describing a different geometry from another quoting 50 m end to end. Do not compare those offers as equal quantities until the endpoints match. Include a dimensioned sketch in the purchase revision.

Measure the route in reproducible segments

Identify the actual panel positions, rack entry points, vertical managers and approved overhead or underfloor pathway. Divide the route at visible landmarks so another person can repeat the measurement. Record the drawing revision and the method used to obtain each dimension.

Follow the cable’s supported path, including turns and elevation changes, rather than a straight line across the room. Confirm that the chosen tray and entry are available for this assembly. A mechanically obstructed route cannot be solved by ordering extra fiber length.

Keep service allowance separate

Assign service loops to named locations with an operational purpose. Examples include a documented equipment repositioning allowance or an approved maintenance loop. Specify how each loop will be supported and accessed. Do not use a general slack percentage as a substitute for this physical plan.

Worked takeoff for a rack-to-rack assembly

Assume a hypothetical connector-tip-to-connector-tip order convention. All dimensions below follow the final route, and rack segments already reach the connector interfaces. The two service allowances are additional. No separate breakout-leg length is to be added again.

Suppose the manufacturer offers 1 m ordering increments with a hypothetical ±0.5 m delivered-length tolerance. An order for 50 m can arrive between 49.5 and 50.5 m. It therefore satisfies the assumed minimum, but only if the route measurements are sufficiently reliable and the additional length has an approved place.

Check both the shortest and longest delivered assembly

Assume the design can physically accommodate no more than 51.0 m under that same convention. The nominal order N must satisfy N − 0.5 ≥ 49.5 and N + 0.5 ≤ 51.0. The acceptable nominal interval is therefore 50.0 to 50.5 m. With whole-meter ordering, 50 m is the candidate.

This result depends entirely on the illustrative inputs. If the route survey later adds 0.7 m, the original 50 m order is no longer protected against its negative tolerance. Update the takeoff and storage plan rather than silently borrowing the service allowance needed for maintenance.

Control breakout geometry independently

Overall length does not tell you whether the breakout can reach all assigned panel ports. Record leg length, stagger, connector orientation and the location where the jacket transitions into individual legs. Confirm that the breakout body can sit in the intended manager without strain.

For assemblies serving multiple panels, draw each leg to its destination. A total trunk length that looks correct can still leave one short leg unable to reach a port. Conversely, excessively long legs can create congestion even when the main trunk has little spare length.

Check the installation envelope

Compare the pulling-head dimensions with conduit entries, tray transitions and other restrictions. The protected connector bundle may be much larger than the cable itself. Confirm the approved attachment and pulling method rather than assuming a connector or breakout body can carry installation tension.

The FOA guidance for receiving terminated cables emphasizes protecting assemblies from stress and contamination before installation. Keep that protection in the method statement and avoid exposing connectors early merely to make routing easier.

Review the cable manufacturer’s loaded and installed bend requirements separately. Stored loops must fit the selected management hardware without tight bends or pressure from neighboring cables. A service loop that blocks access or is compressed behind a door is not a useful allowance.

Use a length approval record before manufacture

The approval sheet should identify both endpoints, route revision, measured segments, individual allowances, nominal length, tolerance and maximum permitted stored length. Add the supplier assembly drawing and a named approver. Record unresolved dimensions explicitly instead of converting them into hidden extra slack.

Separate field uncertainty from factory tolerance

Factory tolerance describes how the delivered assembly can differ from the ordered nominal dimension. Survey uncertainty describes how well the required route is known. They are different inputs. If a ceiling pathway is inaccessible or a rack position is provisional, obtain the missing information or document a defensible allowance before approving production.

Check the lower-bound fit using the shortest possible delivered length and the highest justified route requirement. Check upper-bound storage using the longest possible delivered length. This two-sided review avoids selecting an assembly that works only when all uncertainties happen to be favorable.

Manage changes after approval

If a rack moves or a tray route changes, identify every affected assembly and stop treating the old drawing as current. Ask the supplier whether manufacture has started before issuing a revision. Record any agreed rework, substitution or revised delivery condition; do not assume a custom terminated trunk can be shortened without consequences.

Review three dimensions that are easily overlooked

Panel depth: the front of a rack is not necessarily the assembly endpoint. A rear-mounted cassette or a deep enclosure can require a different approach path. Measure to the actual connector interface using the supported routing, including any entry hardware already selected for the panel.

Equipment movement: if a panel is designed to slide or swing for access, verify the required operating movement with its manufacturer. Provide the appropriate flexible routing rather than using the maintenance loop for normal motion. Check the assembly at the relevant positions so movement does not pull on the connector or pinch the breakout.

Shared pathway changes: a future cable bundle may occupy space that initially appeared available for storing excess trunk. Mark the reserved storage location on the as-built drawing and coordinate it with the pathway owner. An undocumented coil can be displaced by a later installer who does not know why it is there.

These reviews do not justify adding length everywhere. Their purpose is to make the required geometry explicit and prevent one allowance from being counted twice. If a condition cannot be confirmed, identify it as an unresolved approval item. A clear exception is more useful to the manufacturer than a dimension padded with unexplained spare meters.

Use the custom fiber optic cable assembly page for the commercial inquiry, attaching the approved dimensions and interface requirements. Our data-center fiber cabling guide covers the wider architecture, while the MPO polarity guide addresses a separate compatibility decision.

At receipt, compare the assembly identifier and delivered documentation with the approved revision before installation. The best takeoff is one that procurement, the manufacturer and the installer can all interpret the same way, without reconstructing the intended endpoints from memory.
