XGS-PON for Utility Grid Monitoring: A Design Guide

Executive summary: XGS-PON can reuse a utility’s fiber investment to connect substations, field cabinets and monitoring devices, but “10G” does not make the optical design automatic. Engineers must select an ITU-T loss class, calculate the complete optical distribution network, define availability and cybersecurity boundaries, and test the actual splitter and route. A worked 1:32 example below totals 26.2 dB and leaves 1.8 dB below a 28 dB B+ maximum—before any project-specific adjustment.

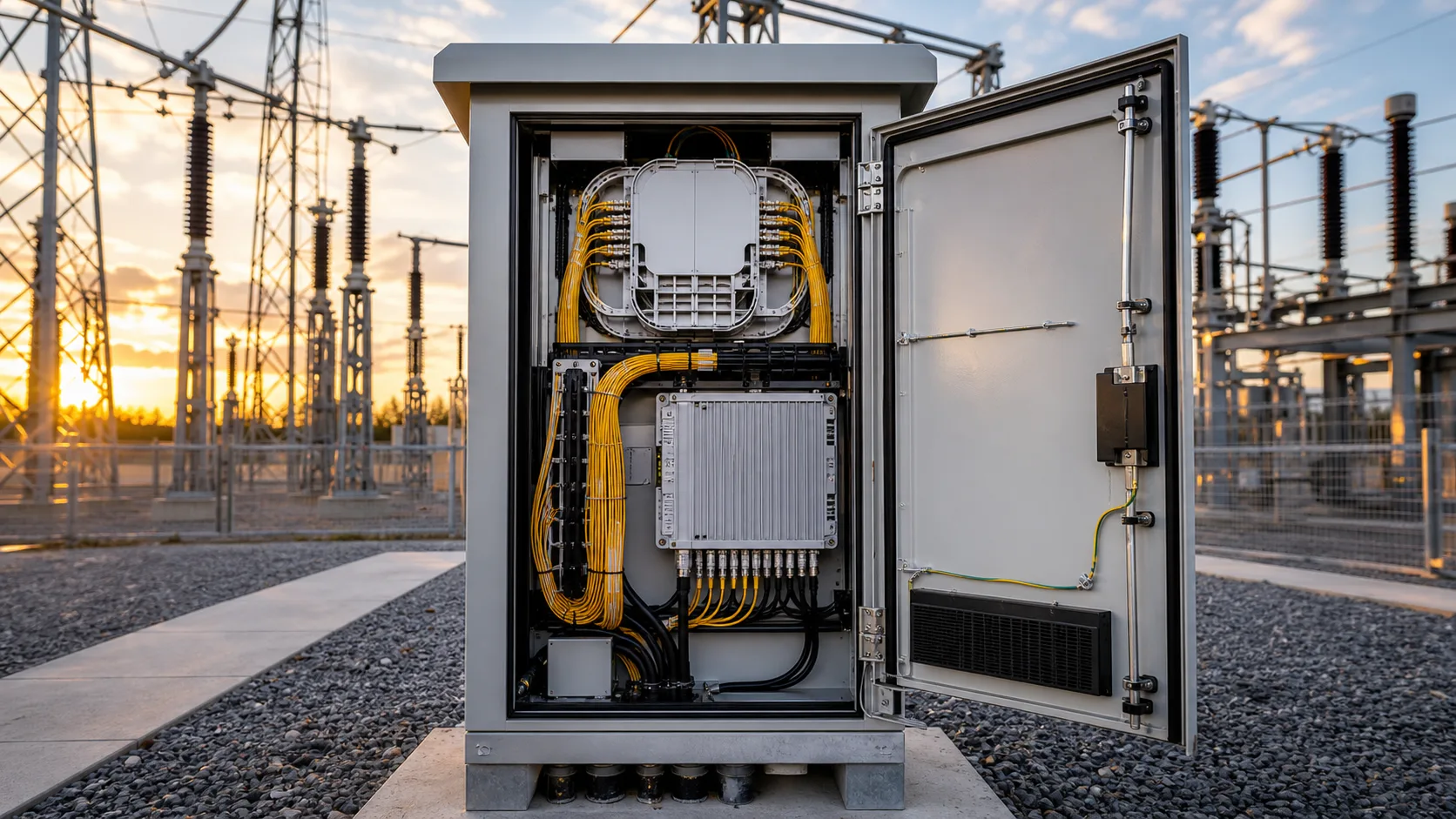

Calix’s August 13 announcement brought this application into focus. The company introduced a hardened, DC-powered ONT intended for utility environments and described 10GE connectivity over standards-based XGS-PON for grid monitoring. The announcement is vendor-specific, but the engineering question is broader: when can a shared passive optical network meet the operational requirements of a critical-infrastructure communications path?

Start with the service, not the PON port

List the field applications before choosing a split ratio. Meter collection, fault indicators, recloser monitoring, engineering access, video surveillance and protective functions do not have the same bandwidth, latency or availability needs. Some can share a PON comfortably. Others may require dedicated wavelengths, active Ethernet, physically diverse paths or a separate operational network.

The Calix grid-monitoring announcement states that its new ONT attaches to XGS-PON, provides a 10GE LAN interface, uses DC power and supports AES data encryption. Those attributes are useful inputs, not a complete system assurance case. The utility must still define power backup, environmental limits, authentication, network segmentation, patching control, failover and recovery time.

What ITU-T G.9807.1 contributes

ITU-T G.9807.1 describes a nominally 10 Gbit/s downstream and 10 Gbit/s upstream passive optical network. It specifies compatible optical-distribution-network parameters, including single-fiber wavelength-division transmission and loss classes. For the Optional wavelength set, the ranges include B+ at 13–28 dB and C+ at 17–32 dB. For the Basic wavelength set, the classes include N1 at 14–29 dB, N2 at 16–31 dB, E1 at 18–33 dB and E2 at 20–35 dB. Maximum fiber distance classes include 20 km and 40 km, subject to the equipment and full system design.

Two details are easy to miss. First, a class has a minimum loss as well as a maximum. A very short, low-loss path can overdrive a receiver and may require attenuation if it falls below the supported class minimum. Second, the optical budget covers the entire ODN: fiber, connectors, splices, splitters, coexistence elements and margin. “The cable is only 12 km” is not a power budget.

Worked 1:32 XGS-PON power-budget example

This example is a transparent planning exercise, not measured Liqiba product data and not a guarantee for any OLT or ONT. Replace every assumed value with the selected component’s data sheet and factory or field measurement.

For a compatible B+ deployment using the Optional wavelength set with a 28 dB maximum, the illustrative headroom is:

28.0 dB − 26.2 dB = 1.8 dB remaining.

The result also exceeds the 13 dB B+ minimum. A 1.8 dB remainder is not automatically acceptable. The project may require a larger restoration margin, an additional coexistence filter, more connectors, a longer route or a harsher aging allowance. If the route grows by 5 km at the same conservative 0.35 dB/km assumption, it consumes another 1.75 dB and nearly exhausts the example’s headroom.

Do not insert the theoretical splitting loss alone. Use the specified maximum insertion loss of the actual PLC fiber splitter, including its connector configuration and operating wavelength. A connectorized splitter normally has a different loss allocation from a bare-fiber module.

Choose the split architecture around operations

A centralized splitter in a controlled site simplifies inventory and can make testing easier from one location. A distributed splitter can reduce feeder-fiber demand but creates more field access points and can complicate fault isolation. Utilities should model the failure domain: how many monitored assets disappear if one feeder, cabinet or splitter fails?

Record the split topology in the asset system. Each ONT should map to an OLT port, splitter input, splitter output, route and cabinet. Reserve unused outputs with clean dust caps, and do not treat them as “free” capacity until the loss and bandwidth effects are rechecked.

The drop segment also needs an environmental decision. A substation yard, roadside cabinet and control building may require different armor, rodent resistance, water blocking, flame rating and installation practice. Compare the route with the available FTTH drop cable constructions and the broader fiber-optic cable options; final selection must follow local electrical, fire and utility standards.

IEC 61850 and XGS-PON solve different layers

The IEC TR 61850-1-1:2026 overview describes communications between intelligent electronic devices and the related system requirements for power utility automation. IEC 61850 includes data models, services, configuration concepts and communication mappings. XGS-PON is a transport access technology. Saying that a link is XGS-PON does not establish IEC 61850 performance or conformance.

For every intended IEC 61850 application, document message behavior, acceptable delay and jitter, redundancy, time synchronization, multicast handling, priority, failure detection and cybersecurity. Protection traffic can be far more demanding than periodic monitoring. A shared PON may be appropriate for one class of traffic and inappropriate for another, even at the same substation.

Availability and security questions for the design review

• Power: How long can the OLT, active cabinet equipment and ONT run after station power fails?
• Path diversity: Are redundant services routed through separate ducts, splitters and OLT cards, or do they share a hidden single point of failure?
• Segmentation: Are operational devices isolated from subscriber, corporate and guest traffic?
• Identity and access: How are ONTs authenticated, provisioned, replaced and decommissioned?
• Management: Are configuration, logs and firmware changes protected and auditable?
• Physical control: Who can open a splitter cabinet, disconnect a patch cord or connect an unauthorized endpoint?

Encryption on one link layer is helpful, but it is not a substitute for layered security, controlled administration and application-level protection. Likewise, a passive outside plant reduces the number of powered field devices but does not remove cable cuts, dirty connectors, water ingress or cabinet-access risk.

Field acceptance: measure the network you actually built

Before connecting production devices, inspect and clean every accessible connector. Verify polarity and endpoint labeling. Measure end-to-end insertion loss in both directions at the project wavelengths, because a connector or splice can be directionally different. Compare the worst measured result with the approved loss budget, not with an informal “typical” value.

Use OTDR traces to baseline route length, major events and splitter locations where the test method and instrument dynamic range support the topology. PON splitters create large loss events and can make downstream branches difficult to interpret; select appropriate launch and receive fibers, wavelength, pulse width and averaging. Save native traces as well as PDF summaries so future technicians can compare events rather than only total loss.

Acceptance records should identify test instrument, calibration status, wavelength, direction, launch condition, route, splitter port, OLT port and ONT location. A technically sound factory component does not prove that the installed channel survived transport, pulling, splicing and cabinet work. The quality documentation page can support supplier review, while project acceptance still depends on the actual delivered items and field results.

Procurement checklist

1. Confirm OLT and ONT support the same XGS-PON wavelength plan and optical-loss class.
2. Request maximum—not only typical—loss for every splitter and connectorized assembly.
3. State cabinet temperature, humidity, ingress, corrosion, grounding and power requirements.
4. Define split ratio, spare ports, feeder diversity and restoration strategy.
5. Allocate optical loss element by element and preserve a documented engineering margin.
6. Specify inspection, insertion-loss, OTDR and record-delivery requirements.
7. Validate application performance, cybersecurity and failure recovery in a representative pilot.

For background on PON topology and loss allocation, see the FTTH network design guide. The same arithmetic applies to a utility ODN, but critical-infrastructure availability and security requirements make the acceptance process more rigorous.

Sources and verification note

This article was checked on August 30, 2026 against the Calix product announcement, ITU-T G.9807.1 (2023) Amendment 1 (2025) and IEC’s current 61850 overview. Vendor claims are attributed to the announcing company. The worked losses are labeled assumptions and must not be represented as measured product or project data.
