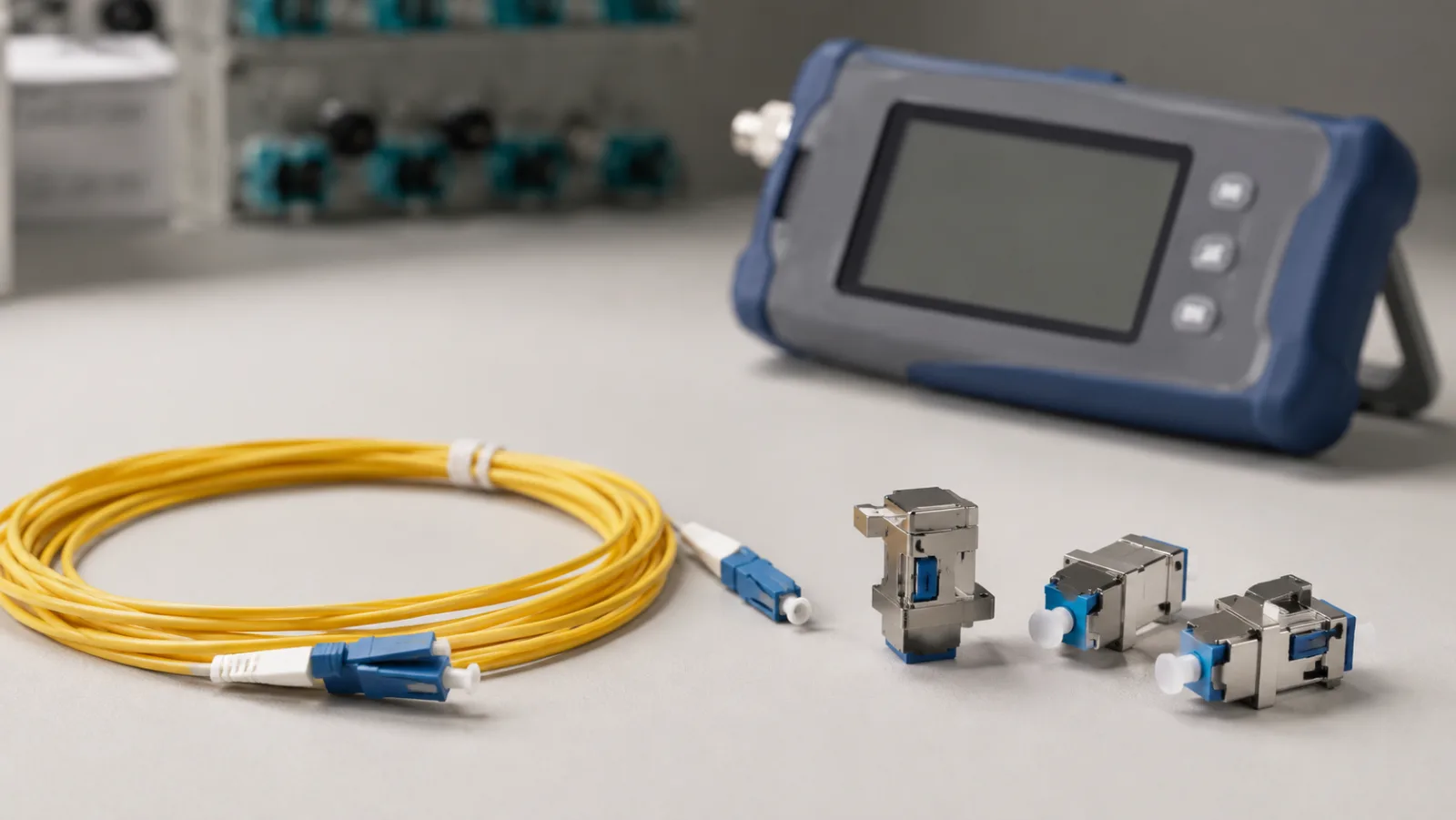

Summary: To decide how to calculate optical attenuator value, calculate an acceptable range rather than subtracting two typical readings. The attenuator must reduce the strongest possible input below receiver overload while leaving the weakest possible input above sensitivity. Include path-loss variation, attenuation tolerance and deliberate operating margin in both checks.
This article addresses a conventional point-to-point single-mode link with average-power specifications expressed consistently in dBm. If a module specifies OMA, per-lane limits or an application-specific power penalty, follow that interface’s calculation method. Average power and OMA are different quantities and cannot be substituted silently.
Identify the two receiver limits
Sensitivity is the lower input needed to meet the specified performance conditions. Overload is the upper operating input. The FOA guide to optical attenuators explains why both weak and excessive received power can degrade a link and why attenuation must leave usable operating margin.
Do not confuse overload with an absolute maximum optical input or damage limit. The latter is not an acceptable service target. Copy the exact terminology and conditions from the selected receiver datasheet, including wavelength, bit rate, FEC conditions and temperature range where relevant.
Define the variables before calculating
| Symbol | Meaning | Unit |
|---|---|---|
| Pmax / Pmin | Guaranteed maximum / minimum transmitter output | dBm |
| Lmin / Lmax | Minimum / maximum deployed path loss, excluding the new attenuator | dB |
| Rmax / Rmin | Receiver upper operating input / sensitivity | dBm |
| A / t | Nominal attenuator loss / assumed symmetric tolerance | dB |
| Mh / Ml | Chosen high-power and low-power operating margins | dB |
Count the installation consistently. If a connectorized attenuator’s specified insertion loss includes a connection, do not add that connection a second time. If the added hardware requires another patch cord or adapter, include its contribution. Establish the optical measurement boundary before comparing supplier numbers.
Derive the permitted attenuation interval
The strongest received signal occurs with maximum launch, minimum path loss and minimum actual attenuator loss. Require:
Pmax − Lmin − (A − t) ≤ Rmax − Mh
Rearranging gives the lower bound: A ≥ Pmax − Lmin − Rmax + Mh + t. If this is negative, zero additional attenuation may satisfy the high-power check, subject to the complete interface requirements.
The weakest received signal occurs with minimum launch, maximum path loss and maximum actual attenuator loss. Require:
Pmin − Lmax − (A + t) ≥ Rmin + Ml
The upper bound is therefore A ≤ Pmin − Lmax − Rmin − Ml − t. If the lower bound exceeds the upper bound, there is no acceptable fixed attenuator under those assumptions. Review the optics, route and margins instead of choosing an arbitrary compromise.
Worked example: selecting between 5 dB and 7 dB
Assume a hypothetical transmitter range of 0 to +4 dBm, receiver operating range from −18 to −3 dBm, path loss between 1 and 3 dB, a ±0.5 dB attenuator tolerance, 0.5 dB overload margin and 2 dB sensitivity margin. These are educational inputs, not a specification or measured installation.
The minimum nominal attenuation is 4 − 1 − (−3) + 0.5 + 0.5 = 7.0 dB. The maximum is 0 − 3 − (−18) − 2 − 0.5 = 12.5 dB. A qualified 7 dB device is therefore a candidate within the calculated interval.
| Candidate | Strongest receive power | Weakest receive power | Result with stated margins |
|---|---|---|---|
| 5 dB ±0.5 dB | 4 − 1 − 4.5 = −1.5 dBm | 0 − 3 − 5.5 = −8.5 dBm | Fails upper operating target of −3.5 dBm |
| 7 dB ±0.5 dB | 4 − 1 − 6.5 = −3.5 dBm | 0 − 3 − 7.5 = −10.5 dBm | Meets both targets in this example |
| 15 dB ±0.5 dB | 4 − 1 − 14.5 = −11.5 dBm | 0 − 3 − 15.5 = −18.5 dBm | Fails lower operating target of −16 dBm |
The example demonstrates why “more attenuation is safer” is incomplete. A 7 dB candidate lands exactly on the assumed upper target in the worst case, so additional uncertainties require review. Confirm the supplier’s actual tolerance model, wavelength dependence and operating conditions before selecting a production value.
Do not convert a reach label into an attenuation rule
A long-reach optic may need attenuation on a short route, but the required value is product-specific. For example, Cisco’s documented 1000BASE-ZX installation guidance includes receiver-side attenuators for specified short spans. That guidance applies to the listed hardware, not every optic carrying a similar reach description.
Measure or bound the path loss at the operating wavelength. A kilometer estimate alone omits patching, splices, passive components and actual cable performance. The FOA loss-budget reference is useful background for organizing those passive contributions.
Specify the component as well as the dB value
Request wavelength range, attenuation tolerance, return loss or reflectance, connector interface, polish, power handling and environmental rating. Confirm that the device supports the fiber type and signaling application. A physically mating adapter is not evidence of optical suitability.
For a combined patching requirement, the custom fiber optic cable assembly page provides a relevant quotation route. Include your attenuation calculation and ask for confirmation of the complete assembly loss and mating arrangement. This does not imply that every custom assembly or attenuator value is already qualified or stocked.
Stress-test the assumptions before purchase
A cleaner or shorter route: minimum path loss matters because improving the link can increase received power. Do not rely on a dirty connector to supply necessary attenuation. If a maintenance team later replaces a high-loss patch cord, the receiver must remain within its permitted range. Set the minimum-loss assumption from a defensible clean configuration.
An additional patch panel: maximum path loss matters because future connections consume low-power margin. Add the specified worst-case contribution and recalculate the upper attenuation bound. A device that worked before a routing change can become excessive afterward, even if the transmitter and receiver are unchanged.
A replacement transmitter: the new unit may operate at another point within the guaranteed output range. Designing from one measured sample instead of the guaranteed extremes can produce an unexpected overload or weak-signal condition after routine replacement. Keep the datasheet revision used for the original calculation.
Distinguish tolerances from operating allowances
Attenuator tolerance, meter uncertainty, expected path variation and project margin describe different effects. List them separately and explain where each enters the inequalities. If the supplier gives asymmetric attenuation limits, use its actual minimum and maximum rather than forcing them into a symmetric plus-or-minus model.
Also verify whether temperature and wavelength variation are already included in the supplier limits. Adding them again can make the budget unnecessarily conservative; omitting them when they are excluded can leave it optimistic. The calculation should make that accounting visible to a reviewer.
Define what happens when no fixed value fits
An empty interval is a design finding. Possible responses include a different optical interface, an approved variable attenuator arrangement or a revised route specification. Select the remedy with the equipment supplier and project owner. Do not reduce the agreed margins merely to make an available stock value appear acceptable.
Verify the installed operating point
Attach the approved interval to the work order, not just the selected nominal value. A replacement is acceptable only when its guaranteed minimum and maximum attenuation remain inside the design constraints at the required wavelengths. Record the connector orientation and physical location so maintenance staff do not accidentally move the device to a different circuit. If several similar links terminate in the same rack, give each attenuator a circuit-specific inventory entry and preserve the corresponding power worksheet.
Plan the initial connection according to the equipment instructions, particularly if an unattenuated signal could exceed the permitted input. Measure received power with an appropriate meter and wavelength setting, then record the installed attenuator identity and location. Repeat independently for the opposite direction of a duplex link.
Use the power-meter versus OTDR guide to choose the appropriate evidence. An OTDR event map cannot replace the receiver operating-power check. The fiber troubleshooting and maintenance guide provides the broader fault-isolation workflow.
Complete acceptance with traffic and error monitoring under the agreed conditions. Retain launch readings, receive readings, module identifiers, attenuator tolerance and the calculation revision. Recalculate when optics or routing change: a previously appropriate fixed value can become excessive after a transmitter replacement or additional patching.
Frequently Asked Questions
Do all short single-mode links need an attenuator?
No. Compare the maximum transmitter output and minimum path loss with the receiver maximum operating input. Many interfaces are designed for low-loss connections; others require attenuation under specified conditions.
Should the calculation use typical transmit power?
Use guaranteed extremes for design: maximum launch for overload and minimum launch for sensitivity. Typical readings are useful operational evidence but do not cover component variation or the full operating range.
Is receiver overload the same as a damage threshold?
No. Overload normally describes the upper input for specified performance. An absolute maximum or damage threshold is a separate specification and must not be used as a normal operating target.
Can I add a 10 dB attenuator just to be safe?
Only if both power limits remain satisfied after tolerance and margin are included. Excessive attenuation can move the link below receiver sensitivity. Calculate the acceptable interval first.
Where should an attenuator be installed?
For the conventional duplex point-to-point link discussed here, a receiver-side location is usually practical, subject to equipment instructions. Single-fiber BiDi and multiwavelength systems need a separate topology review because an inline device may affect more than one signal direction or wavelength.
